INON LF1400-S LED Flashlight (1,400 Lumens, 30° Beam)
- 1,400 lumens, 30° beam LED light
- 5,000K color temperature
- Readily available 6x AA batteries
- Interchangeable light head design
- Description
- Specifications
- Item Includes
Max. 1400 lumen Two Power Setting, Standard Beam Powerful Underwater Light
Maximum 1400 lumen and 30 degree coverage powered by 6 x AA batteries but you can still benefit portable size thanks to its cylindrical battery pack. Powerful light source supports various scenes as like a handy torch to deliver the light further away in cave or during night dive, or a lighting device for macro imaging.
Ideal lighting device for aiming or macro imaging thanks to carefully selected white LED chip producing quality light with enhanced color reproducibility and color temperature 5000K.
Simple yet durable rotary switch provides two power settings for various scenes; FULL with maximum intensity 1400 lumen or LOW with 700 lumen for longer burn time. The rotary switch is equipped with Lock Ring to prevent accidental operation when the product is not in use.
Operated by easily obtainable 6x AA batteries. Using compatible rechargeable batteries like "eneloop" or "eneloop pro" enables you to share same battery charger with an INON strobe to enhance mobility and minimize your luggage space. The rated practical burn time (*) with "eneloop pro" (BK-3HCC) rechargeable batteries, is approx. 65 minutes at FULL mode or approx. 175minutes (2hrs 55 min) at LOW mode.
(*) Average time to get half brightness comparing to initial performance when using "eneloop pro" batteries (Model code: BK-3HCC).
Standard packaged accessory of the LF1400-S includes "Wide Filter LF-S" to increase standard 30 degree beam coverage effectively at 30% more (approx. 40 degree) and also soften the light itself. Other "Red Filter LF-S" and "Wide Red Filter LF-S" are also packaged to change color tone not to stimulate shy marine lives.
Wide range of optional accessories is available to install on a camera or camcorder.
The light head and battery box is made from seawater-resistant aluminum alloy. Simple yet durable construction with double O-ring for moving parts supports depth rating 120m. The independent rotary switch part is equipped with a stopper to prevent accidental flooding due to over loosening.
Gold coating on electrical contacts of the light head and battery box provides maintenance free circumstances under normal usage.

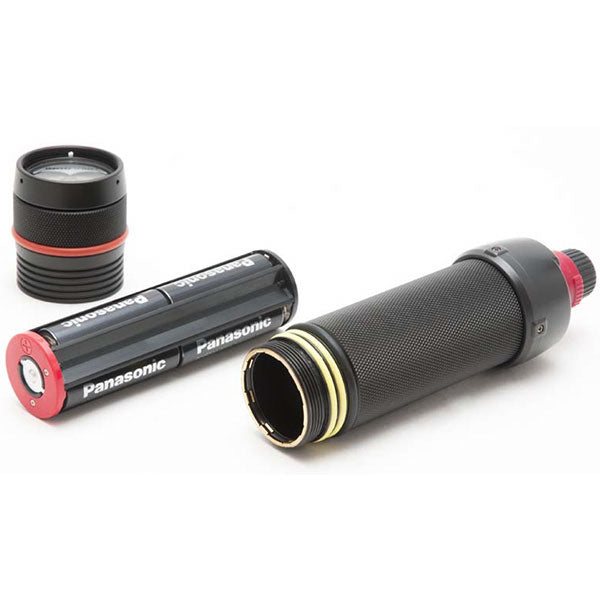

Interchangeable Light Head design enables you to use "LF3100-EW", "LF2700-W" Light Head benefitting for various applications and supports possible upgrade to future model as well.
LED Components
|
High-intensity power LED (Cree XM-L2"T6")
|
Max. Luminouus Flux
(*2)(*3) |
Full mode: approx. 1,400 lumen[“eneloop pro” battery]
|
Low mode: approx. 700 lumen[“eneloop pro” battery]
|
|
Beam Angle
|
approx. 30° [without a filter,
|
and with packaged Red Filter LF-S]
|
|
approx. 40° [with packaged Wide Filter LF-S /
|
|
Wide Red Filter LF-S]
|
|
Color Temperature(*3)
|
approx. 5000K
|
Usable Environment
|
underwater
|
Run Time[underwater]
(*5)(*6) |
approx. 50 minutes ["eneloop" battery at Full]
|
approx. 140 minutes ["eneloop" battery at Low]
|
|
approx. 65 minutes ["eneloop pro" battery at Full]
|
|
approx. 175 minutes ["eneloop pro" battery at Low]
|
|
approx. 60 minutes [Alkaline battery at Full]
|
|
approx. 145 minutes [Alkaline battery at Low]
|
|
Compatible Battery
|
AA"eneloop"/"eneloop pro" battery x 6 (*7)
|
AA NiMH [good quality] x 6 (*8)
|
|
AA Alkaline battery x 6
|
|
Depth Rating
|
120m / 394ft (*9)
|
Size
|
Max. diameter 46.7mm / 1.8in
|
Length 182.6mm / 7.2in
|
|
Weight (*10)
|
[air] 381.9g / 13.5oz
|
[underwater] approx. 167g / 5.9oz
|
|
Working / Storage Temperature
|
±0°C–+30°C / 32°F–86°F
|
LED Life Time
|
approx. 10,000 hours
|
Material/Finishing
|
Corrosion resistant aluminum alloy / rigid almite,
|
PBT, PC, optical glass etc.
|
|
Standard Accessory
|
Red Filter LF-S
|
Wide Filter LF-S
|
|
Wide Red Filter LF-S
|
|
Hand strap, INON grease
|
|
EMC standards
|
EN 55015:2006 + A1:2007,
|
EN 61547:1995 + A1:2000
|
|
CRF 47 FCC Part 15 [incidental radiator]
|
|
AS/NZS CISPER 15:2006
|
(*1)
|
Subject to change without prior notice
|
||||||||||||||||||||
(*2)
|
Nominal value calculated from LED manufacture specification sheet.
|
||||||||||||||||||||
(*3)
|
Due to individual variability of LED, drive circuit or battery etc., luminous flux, color temperature or intensity may vary within rated specification.
|
||||||||||||||||||||
(*4)
|
Average time to get half brightness when continuously turn ON the product with below listed batteries on land (approx. 20°C / 68°F).
|
||||||||||||||||||||
(*5)
|
Average time to get half brightness when continuously turn ON the product with below listed batteries on underwater (approx. 25°C / 77°F).
|
||||||||||||||||||||
(*6)
|
Actual measured data by INON. The value may vary depending on product individual variability, battery manufacture/model, test condition.
|
||||||||||||||||||||
(*7)
|
"New generation" NiMH batteries carrying less self-discharging and heat generating characteristic comparing to "conventional" or "high-capacity" NiMH including batteries listed below have been confirmed compatible by INON INC. as same as recommended Panasonic "eneloop"/"eneloop pro" battery (BK-3MCC, BK-3HCC, BK-3HCD).
|
||||||||||||||||||||
(*8)
|
Some ”conventional” or ”high-capacity” NiMH rechargeable batteries have significant self-discharge and heat-generating characteristic resulting difficulty to keep their performance during usage. We recommend using recommended batteries.
|
||||||||||||||||||||
(*9)
|
Without operating the ”switch”. INON has confirmed depth rating 70m/230ft including switch operation.
|
||||||||||||||||||||
(*10)
|
Including 6 x AA ”eneloop” batteries.
|
- LF1400-S light
- Red Filter LF-S
- Wide Filter LF-S
- Wide Red Filter LF-S
- Hand strap
- INON grease
- User manual
- 1 Year warranty
