- INON UWL-95S XD Wide Conversion Lens INON UWL-95S XD Wide Conversion Lens

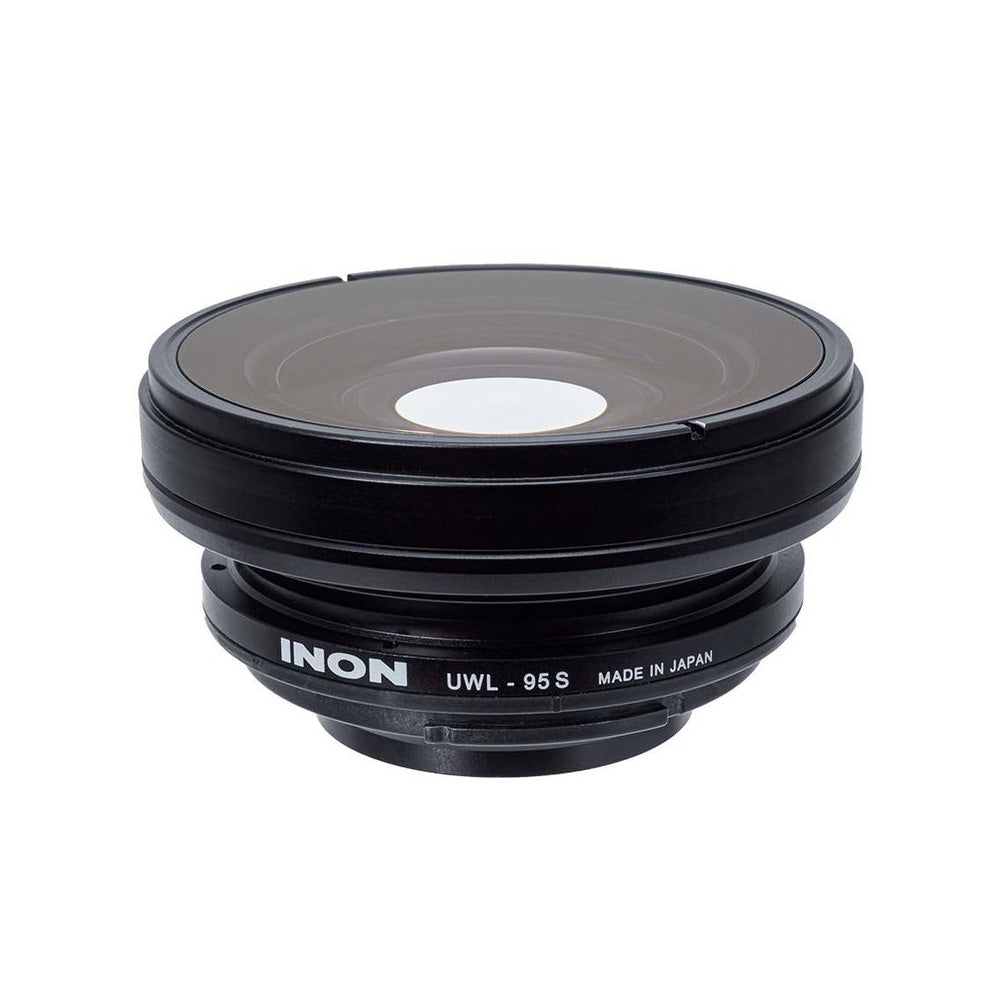

INON UWL-95S XD Wide Conversion Lens
- Max. view angle: Underwater: 95.1° /Air: 159.0°
- Minimum focusing distance 0 cm
- XD mount easy attachment and removal
- Dual use land/underwater
- Description
- Specifications

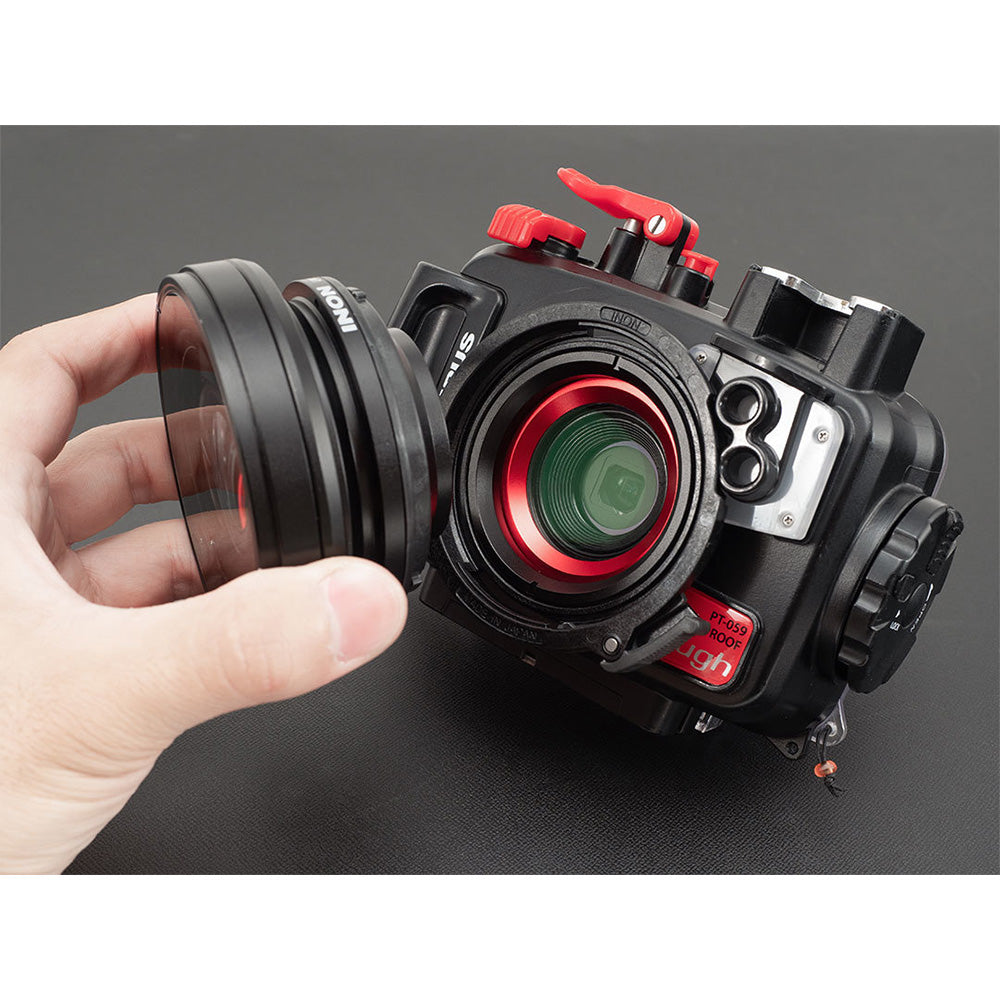

XD Mount makes it easy
The newly developed "XD Mount" enables one-touch lens attachment and removal. The "XD Mount" has high durability, thin design not to spoil optical performance of the lens, lock function to prevent slipping off. Using the "XD Mount" on housing enables you to attach and remove a lens at once.
Compact and handy
Compact size with 90mm outer diameter and 48.5mm length makes it easy to carry around. Thanks to the thin "XD Mount" design which does not sacrifice lens optical performance, the overall set size remains compact when attached on a housing.
Dual use land/underwater
Maximum view angle underwater is 95° which gets widen to 159° when using on land providing fisheye images without complicated and expensive gears.
Super wide option
Optional Dome Lens Unit IIIA, Dome Lens Unit IIIG widens original view angle to approx. 141°.
Newly designed optics provides quality underwater images
Totally renewed optical design effectively suppresses flare/ghost even in backlit condition to provide sharp and high quality image together with optimal lens positioning relative to camera master lens.
Minimum Focusing Distance 0 cm
A subject just in front of the lens or distant seascape never get out of focus. The lens won’t limit shooting distance.
Usable with All Zoom Range
Unlike conventional wide conversion lenses, which are recommended to be used only at zoom wide end as zooming results in poor image quality in peripheral areas, this lens manages to keep high quality image regardless of camera's zoom setting.
Optical Anti-Reflection Coating (AR-Coating)
All component lenses are finished with optical anti-reflective coating, which thoroughly suppresses flare and ghosting providing stable image quality in backlit scenes where flare and ghosting are likely to occur.
UWL-95S XD Wide Conversion Lens
|
|
Outer diameter
|
φ90 mm/3.5 in
|
Length
|
48.3 mm/1.9 in
|
Weight
|
approx.380 g(13.4 oz)[air]
/596 g(21.0 oz)[underwater] |
Mount
|
INON XD Mount
|
Depth ratng
|
60 m/196.9 ft
|
Body material
/ finishing |
Corrosion-resistant aluminum alloy
/rigit black almite, POM etc |
Glass/coating
|
Optical glass/both side anti-reflection coating
|
Construction
/ magnification |
3 groups 4 elements
/0.63 (afocal system) |
Max. view angle **
|
Underwater: 95.1° /Air: 159.0°
|
**(*2) Actual view angle (actual field of view) varies depending on the camera/housing used.
